Initialy I thought to replicate them with silicone rubber moulding and bicomponent polyurethane resin, but the short time made me choose the old aproach.
I replicated them with plastic sprue (for the barrels), some thick plastic sheet for the swivels, lead foil for barell strenghtening braces and some epoxy putty for the ball handels.
First I measured and cut equal portions from a plastic sprue, the same diameter like the model. The middle part was protected with tamiya tape.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjncc2CcsSUF6aNs_8zIC8WaA80guxNrOSX0v6UbnK3AVQ9Q2Ywttvt2B4PdwOcpWnsTQeGsduRNxHB6qp5XhxeSkQt28Rx9eH9iYdvNGI-OgJwwe9nutaybDSdONycqyDaqQdXd58inZM5/s320/2013-09-30+19.35.47.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiOOZP3LUd1VubNZDvYBBIOQElfqw2nFeZDf-52SJ4KxZ-uODP3KHQBAcY9fxsi8BdDAZutMyT-AAdEc-DuDZt7lqLfvd7CPpYkWZclUOUJOlbkYtTSqkdVF6cczGMHs5Yguod9ppftZyie/s320/2013-09-30+19.52.40.jpg)
Extremities were sanded according to the model.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgoxbiIEEWQODjNfmdIq-xa-tJFtxOmxgQw6-SC7Npb5WnchdWuXM0m5GEOm9-jlGQ6XY6amheEoMtJdWjQUI4L4WNH6BeDHpXWz79IdaXs6MXxNI54H7QcO6RoCLlPjF7fIBZmNKWRpvVS/s320/2013-09-30+19.59.40.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg105Gain7mGo0KZWSKU31Y1SDrbllQSsNjZIJZm2jp9FOkhgZBr04rnVlrtvFUT40zwy_ni3AgxivoWhH3XTS4tNRVXFR5B5EpB7RygBHAsW8wZqR4_u2yvNmFBjC6c39hmW3zyl2crtWP/s320/2013-09-30+22.22.45.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhjAxS6zy-VCwVWD74GcFPrxIsOhAw73QZ9TYuTZTi56lqLIRvyU3rxh3a9pZACitPyyd5JFtg5AkSZDvGsXwkCG_Qj8NYxFjhxQXXubZknCCJvmZ5tmrtHf_dCKst63aBQX9IoZBTPcXrP/s320/2013-09-30+23.01.50.jpg)
Every barell was then drilled to receive the ax of the swivel.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEimXPZNNDEz5garBEUnqs2X578DgD5GE9eRWCk-o-ZzkBYPFHr2RNLHdufrCZ4-1s_DpkC0BvxBLXIZ5Z8Q3Ky8EI4SPlvxlkTX5Hp-HUwxhsBa-y0A5OkbaDhQxuVci845FARZzR2kNgSI/s320/2013-09-30+23.02.53.jpg)
The forks were then cut from the material. It was a tedious job because the plastic was a bit brittle. Especialy when drilled.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgRywMMRE0Z69L_wmPW954qYPaYSYpaC5KZNx9CAZW-et97eq-OWcnUSQBp8oErfpARWDgtwmlN-asTrOvDRvP-ph0uCii31nk2D1_o5_QPUiJdFPviggFfCjx1HODM8FFnJ_aF-H8yeqp6/s320/2013-10-01+00.10.47.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg5Iu1wOouEjljGgu5SNcXZlTc63eVO8rPI_LwEBhvac7V1jfYqJz_99wQCYG0mhKgCVw886Y0yxSbKJIdiuOom7DUZBL6jFMH4UwmXS5Q7Eiq5cY5mhtnmJorH807TYyPTh8EykMAKzhbJ/s320/2013-10-01+22.50.02.jpg)
After looking for the right kind of balls ;P for a few hours, I opted for Tamiya epoxy putty ones.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiZ2rsK25RjxoyfeIIL9q1kyzOGv_A9aKpPowqtfrVPEoa_EhaSAiNOAbjXZ7NQ0LczZvFtdRmFL0Nkbne6qaKsGZBx8Snns6CPopF4Qr5lAvo9eTe32-z1YKVfalEZYg45CiH0vlatHiK-/s320/2013-10-02+07.40.02.jpg)

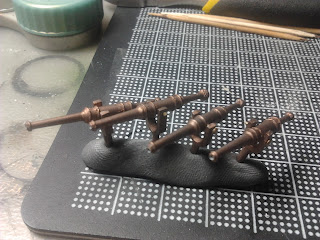

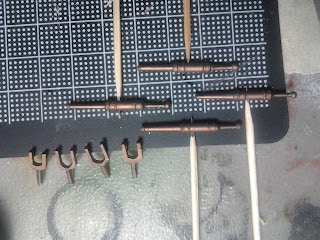

The clones were then painted with a mix of copper and brass from the Agama range of metalic paste.

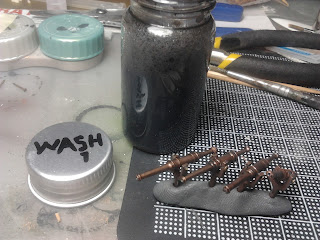

After drying and buffing, a layer of dark wash was applied.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhKRk0E3nf17l1i96HKMXfU5XKZf8lIJdgzwXkT5HhKPMcxs6uoN_fc_5fBdsb3lmT3efalRcCEJm0qqsAjGEuh5jNAHTdSGm-A14qIydV3va6ZlbDt0C_0cSoGfZW2MYXGx4b_tqBzhkHm/s320/2013-10-02+21.02.16.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjE1IrOmdYXEDGpRkl5urud9AVWAOelrAcFzTsc8QfFkuSsrOVCAfcY9_IRMTAX9YR6wqTDgSAtX-7rmouU356Cd-aT19qZep_RPRT2IcpLOGtHaM7w-8quo1B7JjK5CKET7RWadb0s7MKl/s320/2013-10-02+22.50.33.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiY246XiDlzcHW-Dyu6vfKlmD9TgCVprMjUPTR2YM-xHD2N34rAtjmnW4aFSF8_bZ9fndwpvXXLqOISfpBjQ_ECJ4op0W6aGzW_EoGDRZHMSWKr5eqruJPN0hmMFpVXJ9xnSk_OXSR7W_CY/s320/2013-10-02+23.01.49.jpg)
Compared with the orriginal, the clones have also a perforated muzzle.
Succes in less than 4 hours !
